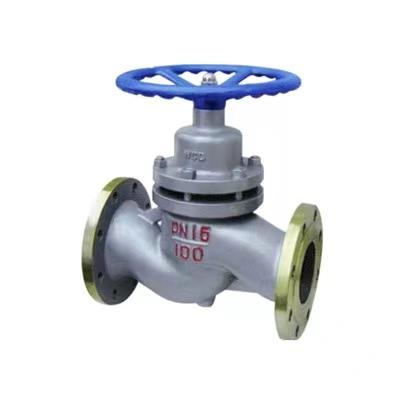

UJ41H 柱塞截止閥
時間：2022/11/11
產品詳情
結構規(guī)范
|
PN1.6-4.0 |
DN15-250 |
PN1.6-4.0 |
DN>250 |
|
柱塞截止閥 |
平衡式柱塞截止閥 |
||
性能范圍
|
閥體材料 |
適用溫度 |
適用介質 |
壓力范圍 |
|
鑄鋼 |
<425℃ |
水、蒸汽、石油產品 |
PN1.6～1.6MPa |
|
不銹鋼 |
<300℃ |
硝酸、醋酸 |
通徑范圍 |
|
含鉬不銹鋼 |
< 300℃ |
氫、氧、尿素等 |
DN15～300mm |
|
蒙乃爾 |
< 300℃ |
氫氟酸等 |
外形及連接尺寸
|
1.6Mpa UJ41H6C UJ41W6C/P/R |
|||||||||||||||||
|
公稱通徑DN(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
主要外形 |
L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
650 |
698 |
787 |
914 |
|
D |
95 |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
215 |
245 |
280 |
335 |
405 |
460 |
520 |
580 |
|
|
D1 |
65 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
180 |
210 |
240 |
295 |
355 |
410 |
470 |
525 |
|
|
D2 |
45 |
55 |
65 |
78 |
85 |
100 |
120 |
135 |
155 |
185 |
210 |
265 |
320 |
375 |
435 |
485 |
|
|
b |
14 |
14 |
14 |
16 |
16 |
16 |
18 |
20 |
20 |
22 |
24 |
26 |
30 |
30 |
34 |
36 |
|
|
Z-d |
44 |
44 |
44 |
48 |
48 |
48 |
88 |
88 |
88 |
88 |
8-23 |
12-23 |
12-25 |
12-25 |
16-25 |
16-30 |
|
|
H |
133 |
170 |
178 |
195 |
230 |
250 |
272 |
300 |
312 |
365 |
400 |
460 |
940 |
985 |
1100 |
1395 |
|
|
重量 |
? |
3.5 |
4.5 |
6 |
8 |
11 |
15 |
21 |
32 |
44 |
62 |
85 |
148 |
260 |
340 |
552 |
752 |
外形及連接尺寸
|
2.5Mpa UJ41H-25C UJ41W-25C/P/R |
|||||||||||||||||
|
公稱通徑DN(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
主要外形 |
L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
650 |
698 |
787 |
914 |
|
D |
95 |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
230 |
270 |
300 |
360 |
425 |
485 |
550 |
610 |
|
|
D1 |
65 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
190 |
220 |
250 |
310 |
370 |
430 |
490 |
550 |
|
|
D2 |
45 |
55 |
65 |
78 |
85 |
100 |
120 |
135 |
160 |
188 |
218 |
278 |
332 |
390 |
448 |
405 |
|
|
b |
16 |
16 |
16 |
18 |
18 |
20 |
22 |
22 |
24 |
28 |
30 |
34 |
36 |
40 |
44 |
48 |
|
|
Z-d |
44 |
44 |
44 |
48 |
48 |
48 |
88 |
88 |
88 |
88 |
12-23 |
8-25 |
12-30 |
16-30 |
16-34 |
16-34 |
|
|
H |
133 |
170 |
178 |
195 |
230 |
250 |
272 |
300 |
312 |
365 |
410 |
470 |
940 |
1000 |
1140 |
1400 |
|
|
重量 |
? |
3.5 |
4.5 |
6 |
8 |
11 |
16 |
22 |
32 |
48 |
65 |
90 |
165 |
280 |
3601 |
580 |
800 |
外形及連接尺寸
|
4.0Mpa UJ41H-40C UJ41W-40P/R |
|||||||||||||||||
|
公稱通徑DN(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
主要外形 |
L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
650 |
698 |
787 |
914 |
|
D |
95 |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
230 |
270 |
300 |
375 |
445 |
510 |
570 |
655 |
|
|
D1 |
65 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
190 |
220 |
250 |
320 |
385 |
450 |
515 |
585 |
|
|
D2 |
45 |
55 |
65 |
78 |
85 |
100 |
120 |
135 |
160 |
188 |
218 |
282 |
345 |
408 |
465 |
535 |
|
|
b |
16 |
16 |
16 |
18 |
18 |
20 |
22 |
22 |
24 |
28 |
30 |
38 |
42 |
46 |
52 |
58 |
|
|
Z-?d |
44 |
44 |
48 |
48 |
48 |
48 |
88 |
88 |
8-23 |
8-25 |
8-25 |
12-30 |
12-34 |
16-34 |
16-34 |
16-41 |
|
|
H |
133 |
170 |
178 |
195 |
230 |
250 |
272 |
300 |
312 |
365 |
410 |
580 |
940 |
1000 |
1140 |
1400 |
|
|
重量 |
? |
3.5 |
4.5 |
6 |
8 |
11 |
16 |
22 |
32 |
48 |
75 |
120 |
185 |
320 |
480 |
700 |
930 |
外形及連接尺寸
|
6.4Mpa U41H-64C UJ41H-64P/R |
|||||||||||||||
|
公稱通徑DN(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
|
主要外形 |
L |
170 |
190 |
210 |
230 |
260 |
300 |
340 |
380 |
430 |
500 |
550 |
650 |
775 |
900 |
|
D |
105 |
130 |
145 |
150 |
165 |
175 |
200 |
210 |
250 |
295 |
340 |
405 |
470 |
530 |
|
|
D1 |
75 |
90 |
100 |
110 |
125 |
135 |
160 |
170 |
200 |
240 |
280 |
345 |
400 |
460 |
|
|
D2 |
55 |
68 |
78 |
82 |
95 |
105 |
130 |
140 |
168 |
202 |
240 |
300 |
352 |
412 |
|
|
D6 |
40 |
51 |
58 |
66 |
76 |
88 |
110 |
121 |
150 |
176 |
204 |
260 |
313 |
364 |
|
|
b |
18 |
20 |
22 |
24 |
24 |
26 |
28 |
30 |
32 |
36 |
38 |
44 |
48 |
54 |
|
|
Z-d |
44 |
48 |
44 |
4-23 |
4-23 |
8-23 |
8-23 |
8-25 |
8-30 |
8-34 |
8-34 |
12-34 |
12-41 |
16-41 |
|
